Vikoseal air cleaners have an high dust holding capacity performance and low restriction. It is easy to service offering vertical a horizontal mounting with a large range of accessories.
The filter elements (safety and main) have been developed with top quality raw materials and reliable radial seal technology. No tools are necessary to fit the elements keeping a perfect seal.
The safety element, which Virgis Filter always suggest to use, can be used mostly for the engine protection over the main element service.

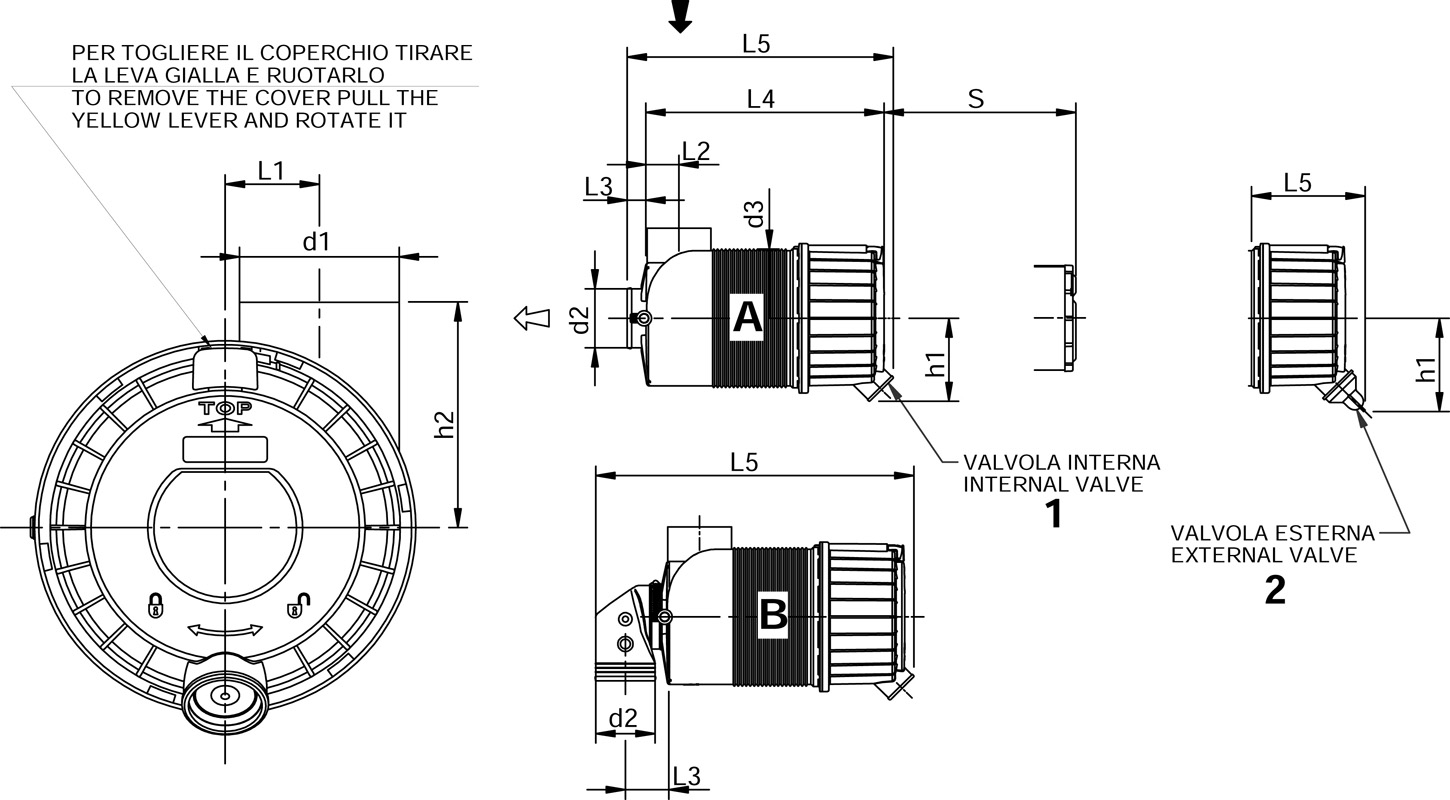

TYPE | PRODUCT | AIR FLOW | AIR ELEMENTS | Valve | d1 | d2 | d3 | L1 | L2 | L3 | L4 | L5 | h1 | h2 | S | |||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Without Safety Cartridge | With Safety Cartridge | Without Safety Cartridge | With Safety Cartridge | Main element | Safety element | |||||||||||||
CODE | m3/min | CODE | CODE | DIMENSIONS in inches | ||||||||||||||
A | 9701726900 | 9701726920 | 6,6 | 6 | 8001441000 | 8001441300 | 1 | 3,78 | 3,57 | 8,35 | 2,22 | 1,93 | 1,12 | 14,06 | 15,75 | 5 | 5,43 | 12,6 |
A | 97017269A0 | 97017269C0 | 6,6 | 6 | 8001441000 | 8001441300 | 2 | 3,78 | 3,57 | 8,35 | 2,22 | 1,93 | 1,12 | 14,06 | 16,38 | 5,63 | 5,43 | 12,6 |
B | 9701787100 | 9701787120 | 5,6 | 5 | 8001441000 | 8001441300 | 1 | 3,78 | 3,5 | 8,35 | 2,22 | 1,93 | 2,56 | 14,06 | 18,82 | 5 | 5,43 | 12,6 |
B | 97017871A0 | 97017871C0 | 5,6 | 5 | 8001441000 | 8001441300 | 2 | 3,78 | 3,5 | 8,35 | 2,22 | 1,93 | 2,56 | 14,06 | 19,45 | 5,63 | 5,43 | 12,6 |
If you want to know more about our products download the PDF of the complete catalog.
