PLASTIC AIR FILTERS "FAR" SERIES
VIROSEAL
PLASTIC AIR FILTERS "FAR" SERIES
VIROSEAL
Virgis "FAR" is the new series of compact and economic air filters. With impact resistant materials.

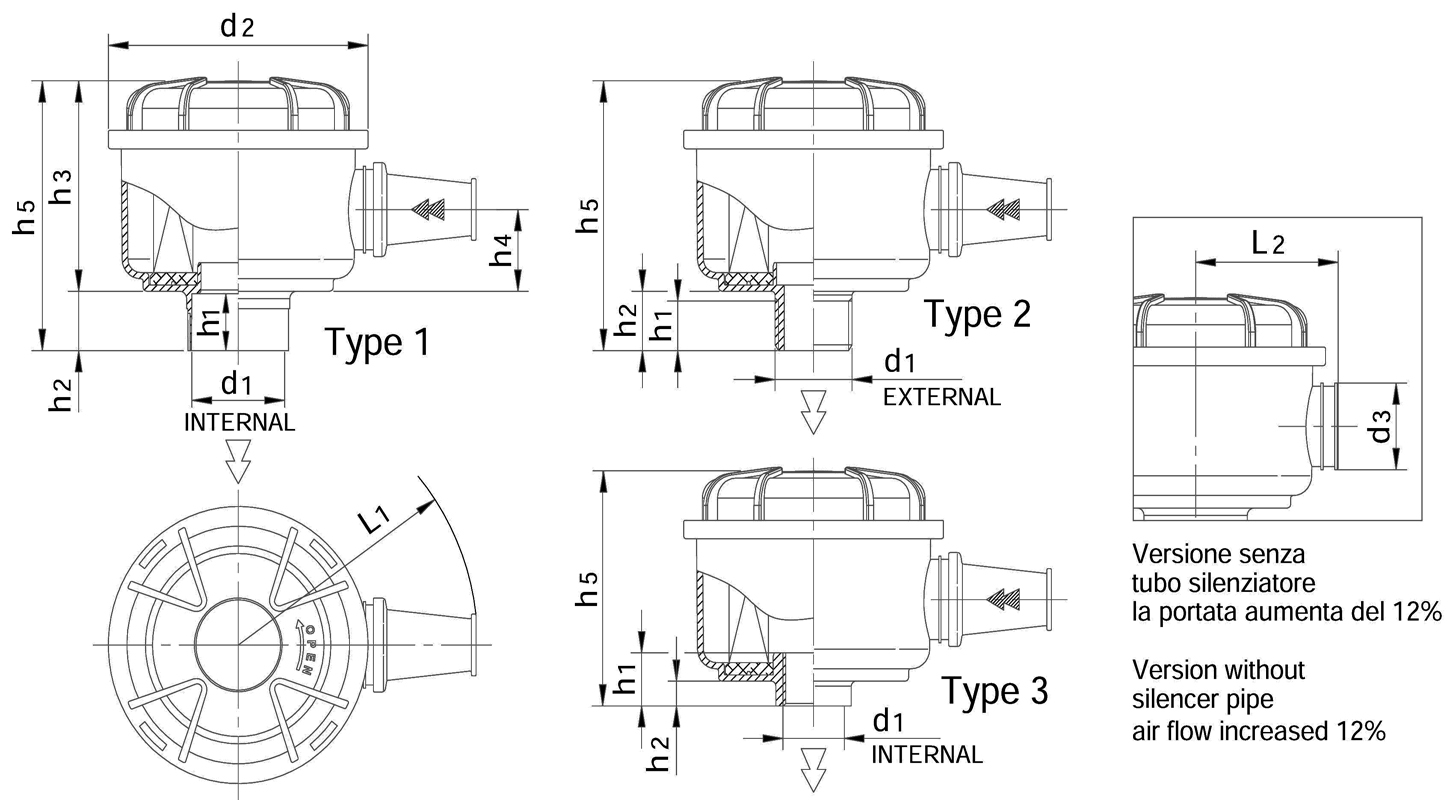

TECHNICAL AND DIMENSIONAL DATA
| TYPE | PRODUCT | AIR FLOW | AIR ELEMENTS | d1 | d2 | d3 | h1 | h2 | h3 | h4 | h5 | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CODE | m3/min | CODE | DIMENSIONS in inches | ||||||||||
| 1 | 9751571800 | 0,6 | 8001563300 | 0,79 | 4,41 | 1,38 | 0,91 | 0,94 | 3,35 | 1,3 | 4,29 | 4,04 | 2,42 |
| 1 | 9751572000 | 0,8 | 8001563300 | 1,18 | 4,41 | 1,38 | 0,91 | 0,94 | 3,35 | 1,3 | 4,29 | 4,04 | 2,42 |
| 1 | 9751563800 | 1 | 8001563300 | 1,57 | 4,41 | 1,38 | 0,91 | 0,94 | 3,35 | 1,3 | 4,29 | 4,04 | 2,42 |
| 1 | 9751658700 | 1,7 | 8001638400 | 1,57 | 5,67 | 2,05 | 0,91 | 0,91 | 4,45 | 2,05 | 5,35 | 5,08 | 3,07 |
| 1 | 9751638000 | 2,2 | 8001638400 | 2,05 | 5,67 | 2,05 | 0,91 | 0,91 | 4,45 | 2,05 | 5,35 | 5,08 | 3,07 |
| 1 | 9751809300 | 2,6 | 8001809000 | 2,05 | 6,89 | 1,97 | 1,02 | 1,16 | 3,82 | 1,61 | 4,96 | 5,87 | 3,82 |
| 1 | 9751809200 | 2,6 | 8001809000 | 2,36 | 6,89 | 1,97 | 1,02 | 1,16 | 3,82 | 1,61 | 4,96 | 5,87 | 3,82 |
| 1 | 9751809100 | 2,9 | 8001809000 | 2,8 | 6,89 | 1,97 | 1,02 | 1,16 | 3,82 | 1,61 | 4,96 | 5,87 | 3,82 |
| 2 | 9751571900 | 0,6 | 8001563300 | G 3/4 | 4,41 | 1,38 | 0,79 | 0,94 | 3,35 | 1,3 | 4,29 | 4,04 | 2,42 |
| 3 | 9751788600 | 0,2 | 8001563300 | G 1/2 | 4,41 | 1,38 | 0,85 | 0,14 | 3,35 | 1,3 | 3,54 | 4,04 | 2,42 |
| 3 | 9751569400 | 0,6 | 8001563300 | G 3/4 | 4,41 | 1,38 | 0,85 | 0,39 | 3,35 | 1,3 | 3,82 | 4,04 | 2,42 |
Download the Air Filters Technical Catalog!
If you want to know more about our products download the PDF of the complete catalog.
