PLASTIC AIR FILTERS FJ SERIES
JOKTO
PLASTIC AIR FILTERS FJ SERIES
JOKTO
Using the philosophy “Smaller is Better”, Virges Filter have designed a new Air Cleaner System that provides a solutions for the problem that all manufactures face today with engines demanding greater performance, new emission legislation, more air consumption and less available engine compartement space. This new concept enables the O.E. to use small Air Cleaner, which achieves the same performance as a conventional Air Cleaner.

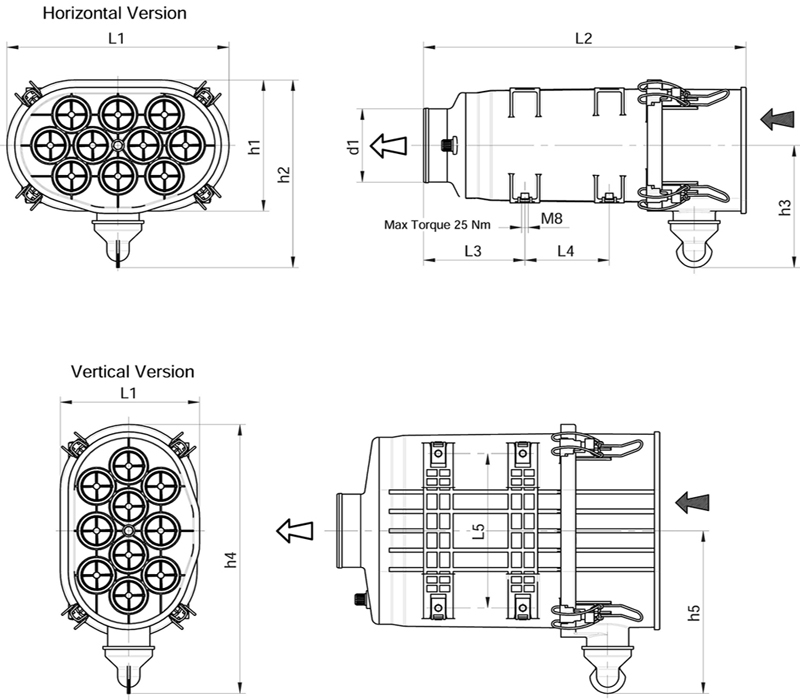

TECHNICAL AND DIMENSIONAL DATA
| TYPE | PRODUCT | AIR FLOW | AIR ELEMENTS | d1 | L1 | L2 | L3 | L4 | L5 | h1 | h2 | h3 | h4 | h5 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CODE | m3/min | CODE | CODE | DIMENSIONS in inches | |||||||||||
| Horizontal | 98520088C0 | 2,1 | 8002003700 | 8602005100 | 1,73 | 6,38 | 9,17 | 3,74 | - | 3,94 | 5,12 | 7,2 | 4,96 | - | - |
| Horizontal | 98520460C0 | 4,1 | 8002027100 | 8602026400 | 2,5 | 9,06 | 13,11 | 3,13 | 3,94 | 6,3 | 5,94 | 8,41 | 5,43 | - | - |
| Horizontal | 98518065C0 | 6 | 8001805600 | 8601807300 | 3,57 | 10,35 | 15,04 | 4,72 | 3,94 | 7,52 | 6,5 | 9,13 | 5,94 | - | - |
| Horizontal | 98519233C0 | 6,4 | 8001904900 | 8601962000 | 3,57 | 10,35 | 15,04 | 4,72 | 3,94 | 7,52 | 6,5 | 9,13 | 5,94 | - | - |
| Vertical | 98518070C0 | 6 | 8001805600 | 8601807300 | 3,57 | 10,35 | 15,04 | 4,72 | 3,94 | 7,52 | 6,5 | - | - | 13,11 | 7,91 |
| Vertical | 98519136C0 | 6,4 | 8001904900 | 8601962000 | 3,57 | 10,35 | 15,04 | 4,72 | 3,94 | 7,52 | 6,5 | - | - | 13,11 | 7,91 |
Download the Air Filters Technical Catalog!
If you want to know more about our products download the PDF of the complete catalog.
