CENTRIFUGAL PRECLEANERS
VISICLEAN
CENTRIFUGAL PRECLEANERS
VISICLEAN
Virgis Filter cyclone precleaner “CT” can be used like rain cap, than trougth the centrifugal deflectors system achieves a first step of separation dust until 75-85% with low pressure drop, then permit to extend service intervals. Bowl service will be done when dust achieves maximum level suggested, at this point the bowl must be empty.

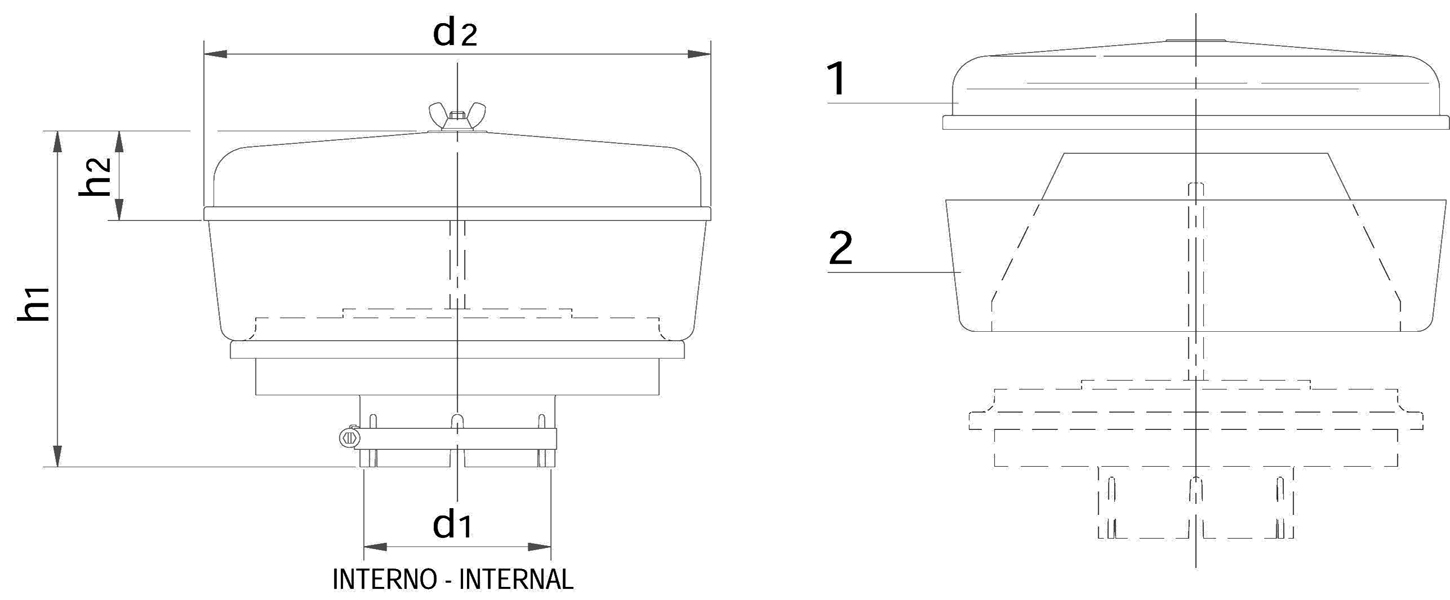

TECHNICAL AND DIMENSIONAL DATA
| TYPE | PRODUCT | AIR FLOW | d1 | d2 | h1 | h2 | Spare part cover | Spare part bowl |
|---|---|---|---|---|---|---|---|---|
| CODE | m3/min | DIMENSIONS in inches | ||||||
| A | 8201180300 | 1,4 | 1,58 | 5,63 | 5,31 | 1,1 | 8801118700 | 8801118600 |
| A | 8201328500 | 1,4 - 1,5 | 1,65 | 5,63 | 5,31 | 1,1 | 8801118700 | 8801118600 |
| A | 8201298200 | 1,4 - 2,1 | 1,78 | 5,63 | 5,31 | 1,1 | 8801118700 | 8801118600 |
| A | 8201310400 | 1,8 - 3,3 | 1,89 | 5,63 | 5,31 | 1,1 | 8801118700 | 8801118600 |
| A | 8201119300 | 2,1 - 3,7 | 2,02 | 5,63 | 5,31 | 1,1 | 8801118700 | 8801118600 |
| A | 8201328400 | 2,1 - 4,1 | 2,13 | 5,63 | 5,31 | 1,1 | 8801118700 | 8801118600 |
| A | 8201121600 | 2,1 - 4,6 | 2,25 | 5,63 | 5,31 | 1,1 | 8801118700 | 8801118600 |
| A | 8201283200 | 2,1 - 4,8 | 2,37 | 5,63 | 5,31 | 1,1 | 8801118700 | 8801118600 |
| A | 8201119200 | 2,5 - 5,1 | 2,51 | 5,63 | 5,31 | 1,1 | 8801118700 | 8801118600 |
| A | 8201193800 | 2,5 - 5,3 | 2,51 | 6,81 | 5,67 | 1,77 | 8801128500 | 8801128600 |
| A | 8201166900 | 2,5 - 5,3 | 2,57 | 5,63 | 5,31 | 1,1 | 8801118700 | 8801118600 |
| A | 8201431800 | 2,5 - 5,5 | 2,56 | 6,81 | 5,67 | 1,77 | 8801128500 | 8801128600 |
| A | 8201144400 | 2,5 - 6,1 | 2,69 | 6,81 | 5,67 | 1,77 | 8801128500 | 8801128600 |
| A | 8201193900 | 2,5 - 6,4 | 2,76 | 6,81 | 5,67 | 1,77 | 8801128500 | 8801128600 |
| A | 8201406800 | 3 - 6,8 | 3 | 7,32 | 7,01 | 1,93 | 8801407000 | 8801249900 |
| A | 8201128300 | 3 - 6,7 | 3 | 6,81 | 5,67 | 1,77 | 8801128500 | 8801128600 |
| A | 8201308800 | 3 - 7,5 | 3 | 10,63 | 7,52 | 2,01 | 8801116500 | 8801116400 |
| A | 8201145600 | 3 - 6,9 | 3,04 | 6,81 | 5,67 | 1,77 | 8801128500 | 8801128600 |
| A | 8201693000 | 5 - 9 | 3,24 | 10,63 | 7,52 | 2,01 | 8801116500 | 8801116400 |
| A | 8201404900 | 5 - 8,8 | 3,54 | 10,63 | 7,52 | 2,01 | 8801116500 | 8801116400 |
| A | 8201105000 | 5 - 10 | 3,79 | 10,63 | 7,52 | 2,01 | 8801116500 | 8801116400 |
| A | 8201118500 | 5,6 - 11,3 | 4,02 | 10,63 | 7,52 | 2,01 | 8801116500 | 8801116400 |
| A | 8201297200 | 6 - 11 | 4,33 | 10,63 | 7,52 | 2,01 | 8801116500 | 8801116400 |
| A | 8201678100 | 9,5 - 19,5 | 4,33 | 12,05 | 8,07 | 2,05 | 8801330600 | 8801320800 |
| A | 8201682500 | 9,5 - 19,5 | 4,49 | 12,05 | 8,07 | 2,05 | 8801330600 | 8801320800 |
| A | 8201145400 | 6,4 - 11,8 | 4,5 | 10,63 | 7,52 | 2,01 | 8801116500 | 8801116400 |
| A | 8201330400 | 6 - 12 | 4,54 | 10,63 | 7,52 | 2,01 | 8801116500 | 8801116400 |
| A | 8201343100 | 7 -13,1 | 4,73 | 10,63 | 7,56 | 2,01 | 8801116500 | 8801116400 |
| A | 8201145500 | 8 - 14,7 | 5,01 | 10,63 | 7,56 | 2,01 | 8801116500 | 8801116400 |
| A | 8201328200 | 8,5 - 20,1 | 5,01 | 12,05 | 8,07 | 2,05 | 8801330600 | 8801320800 |
| A | 8201328300 | 9 - 23 | 5,91 | 12,05 | 8,07 | 2,05 | 8801330600 | 8801320800 |
| A | 8201320900 | 9 - 23,7 | 6 | 12,05 | 8,07 | 2,05 | 8801330600 | 8801320800 |
| A | 8201356300 | 11 - 28 | 7,01 | 12,05 | 10 | 2,05 | 8801330600 | 8801320800 |
| A | 8201595300 | 11 - 30 | 7,01 | 15,98 | 10,63 | 2,09 | 8801593200 | 8801592900 |
| A | 8201597100 | 11 - 33,4 | 8 | 15,98 | 12,2 | 2,09 | 8801593200 | 8801592900 |
| B | 8201407100 | 2,5 - 5,4 | 2,53 | 7,34 | 7,01 | 1,93 | 8801407000 | 8801249900 |
| B | 8201308900 | 3 - 7,5 | 2,99 | 10,63 | 7,76 | 2,01 | 8801116500 | 8801116400 |
| B | 8201219500 | 5,6 - 11,4 | 4,03 | 10,63 | 7,76 | 2,01 | 8801116500 | 8801116400 |
| B | 8201410000 | 8 - 20,2 | 5,04 | 12,05 | 8,58 | 2,05 | 8801330600 | 8801320800 |
